$65.00
Alpine8Kal TKL PCB for Alps
Description
Feature Set:
- Vial support (or Via through .json)
- F12/F13 compatibility
- Alps only
- Shares case compatibility with Hiney H87c/H88c

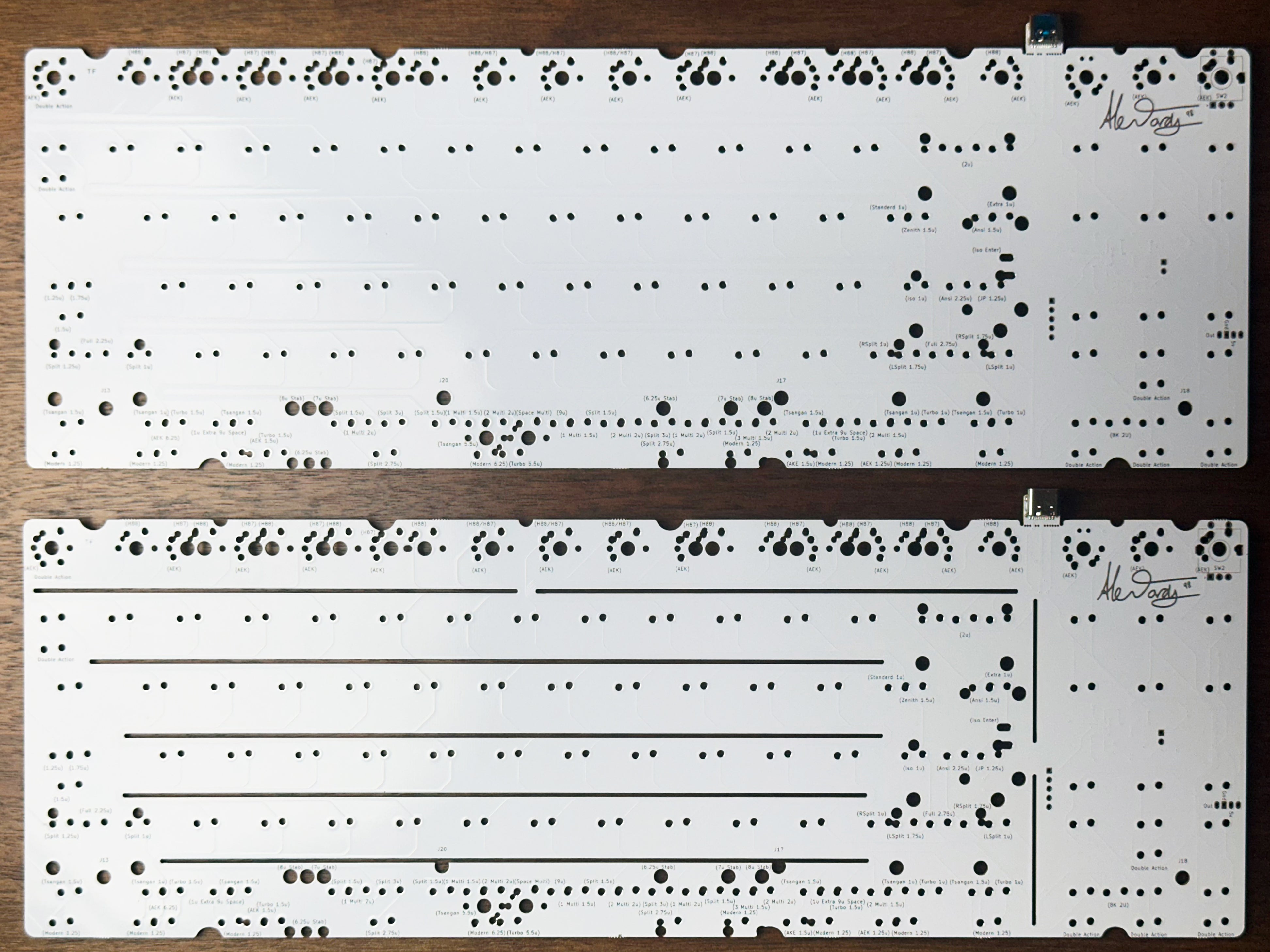

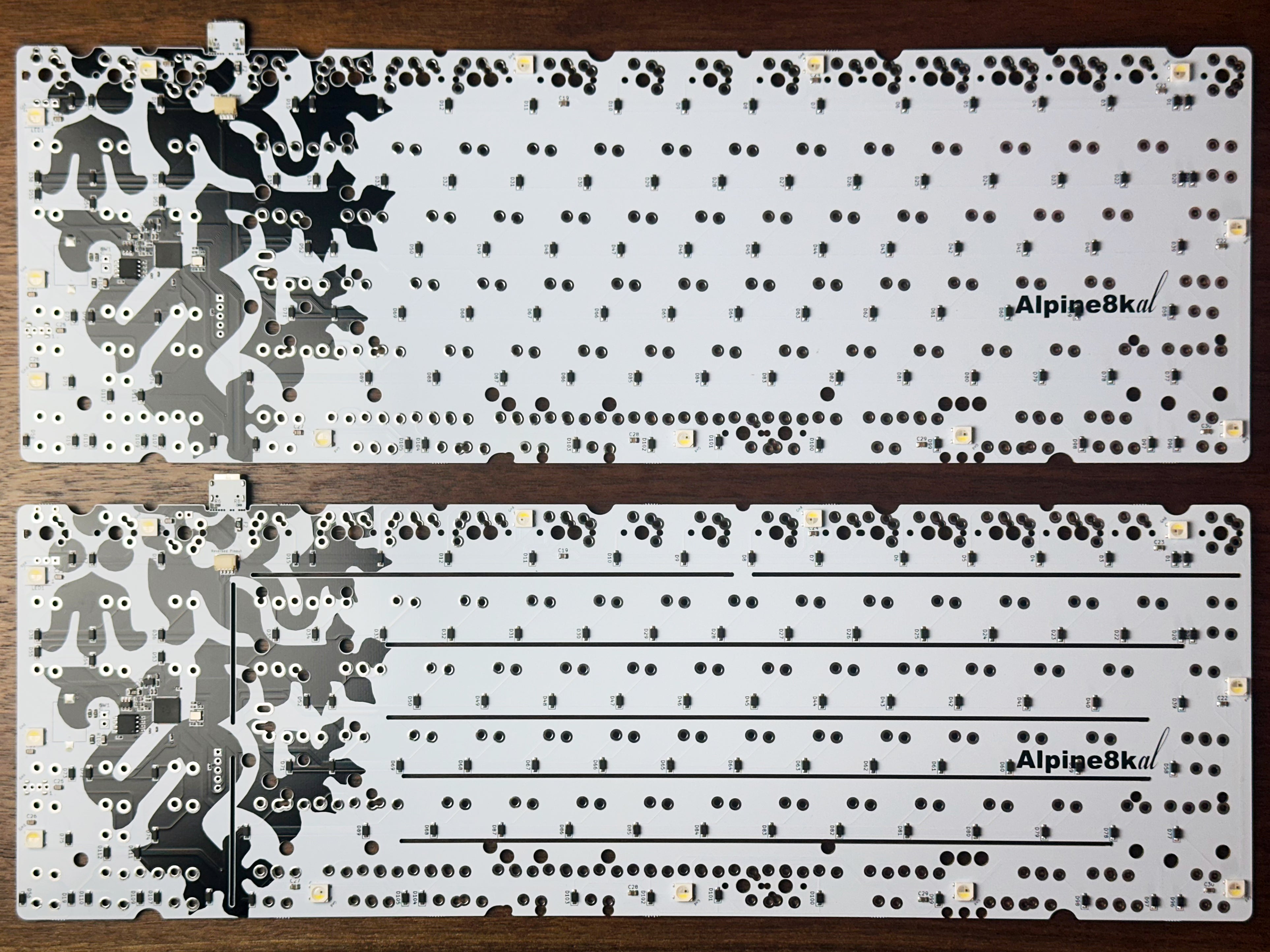

- Solid and flex cut versions
- 1.2mm thickness

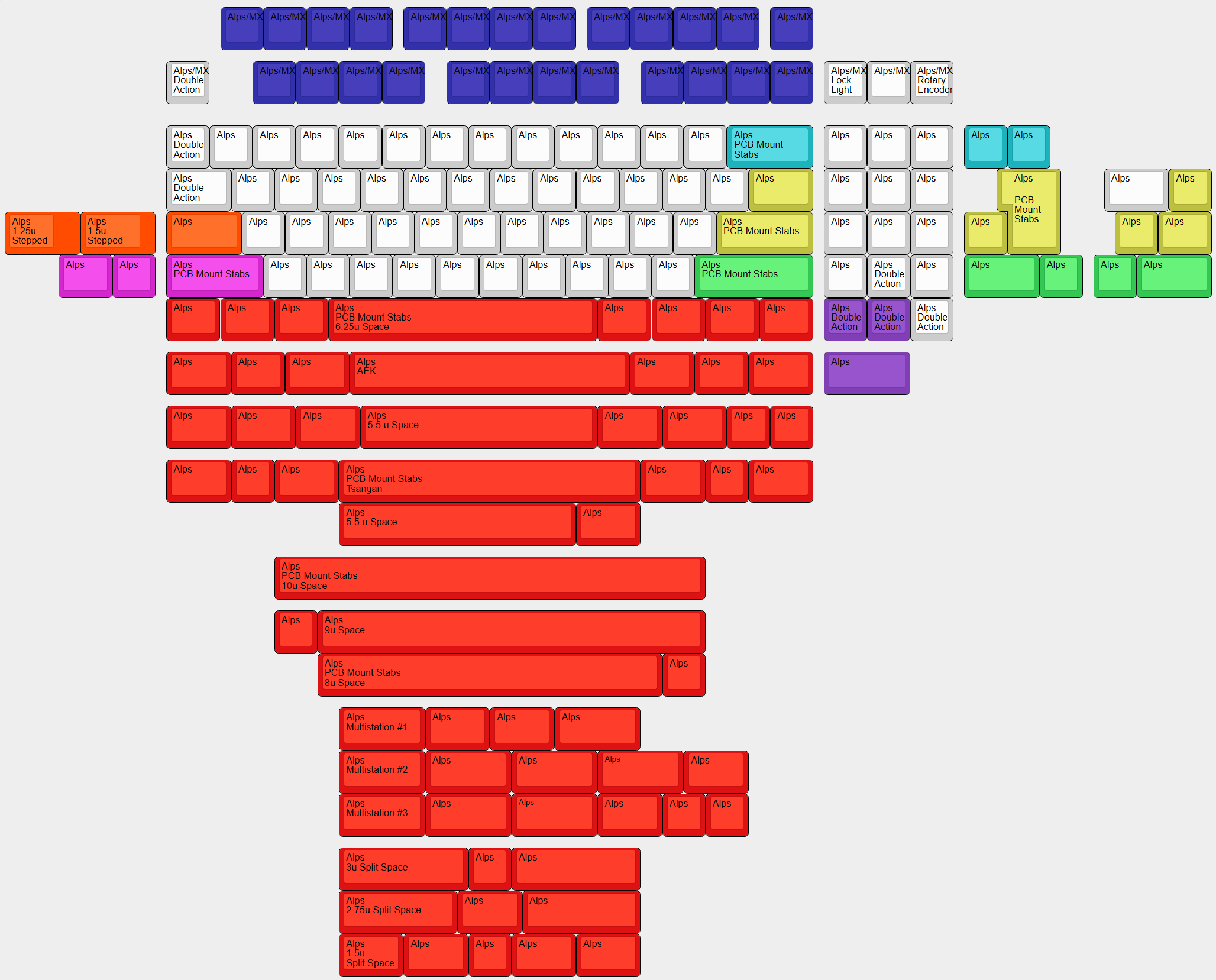

- R5 support for many vintage & split space layouts
- 8K layout support, including 2u zero
- MX stabilizer support for DCS keycap sets
- Full Alps ISO layout support
- F13 Lock LED
- Top side USB-C (with mouse bites for easy removal)
- Back side JST (unified daughterboard JST cable pinout)

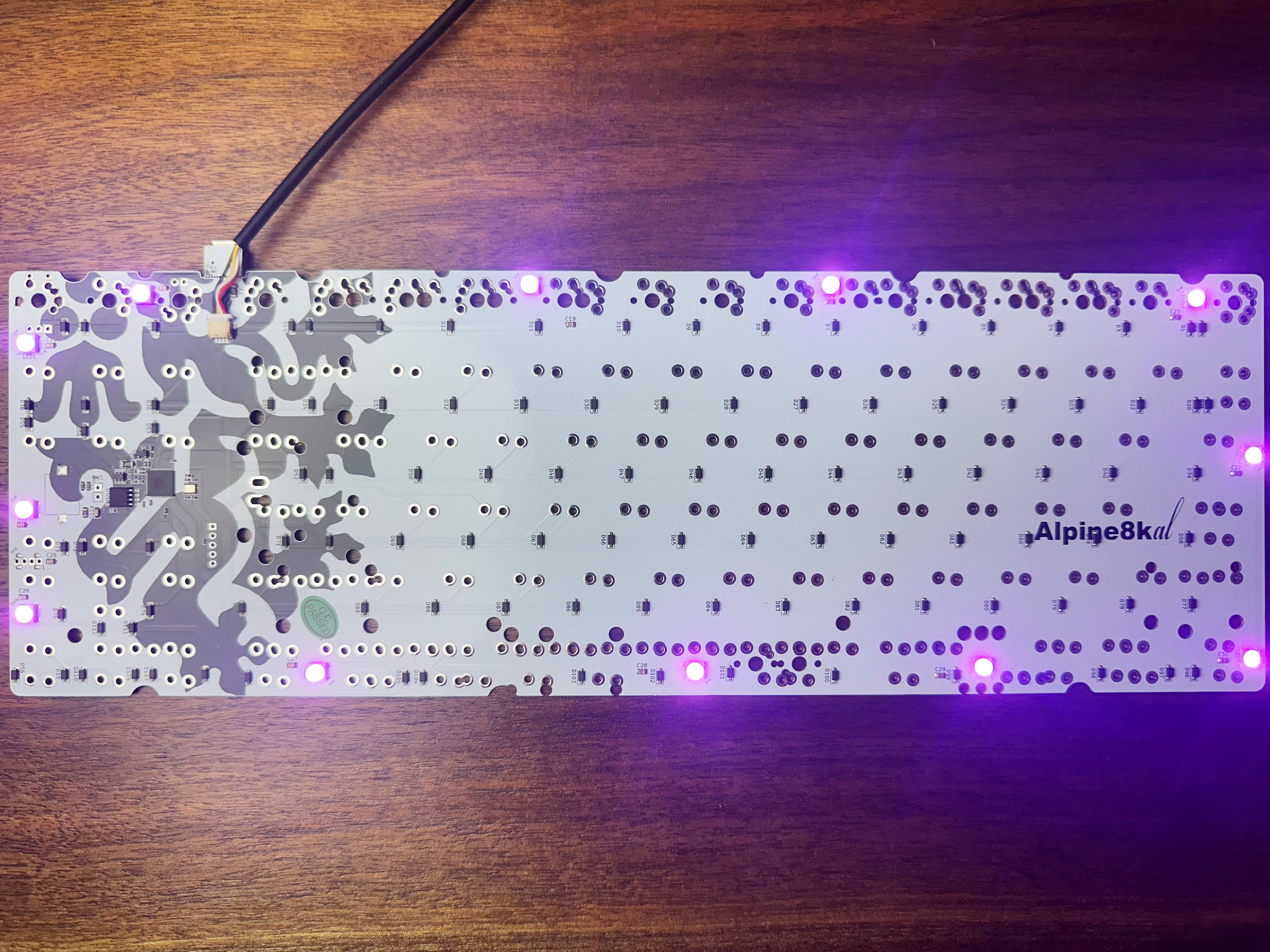

- RGBW underglow (WS2812B)
- Onboard RP2040 (Pi Pico)
- Top side silk screen labeling for ease of assembly
- Designed by Alectardy98
Lucky Strike Extras:
- AEK F-row/R5 support
- MX compatibility on the F-row for layout flexibility, relegendables or novelties
- Alps SKCLKB Double Action support on Esc, Grave, and Arrows
- Beeper support (KLJ-1102 5v Piezo Buzzer)
- Top right rotary encoder support (EC11)
- 5v LED pads for soldering in additional lighting
- Solder pads are enlarged for easy soldering and desoldering with Alps
- Keycult #2 compatibility
- THT headers for custom USB implementation
