Hippoal Alps PCB for the Hippo TKL

A version of my Alpine8Kal pcb adjusted to work in the Hippo TKL by Jacky Design.  Many features of the original pcb were preserved despite not being necessary for the Hippo, in case this pcb is ever useful for another TKL with similar spacing.

Note: the JST location and pin-out does not work with the stock JST cable included with the Hippo TKL.  Instead, it is compatible with the unified daughterboard project.  A suitable JST cable will be included with every Hippoal pcb.

Feature Set:

• Vial support (or Via through .json)
• F12/F13 compatibility
• Alps only

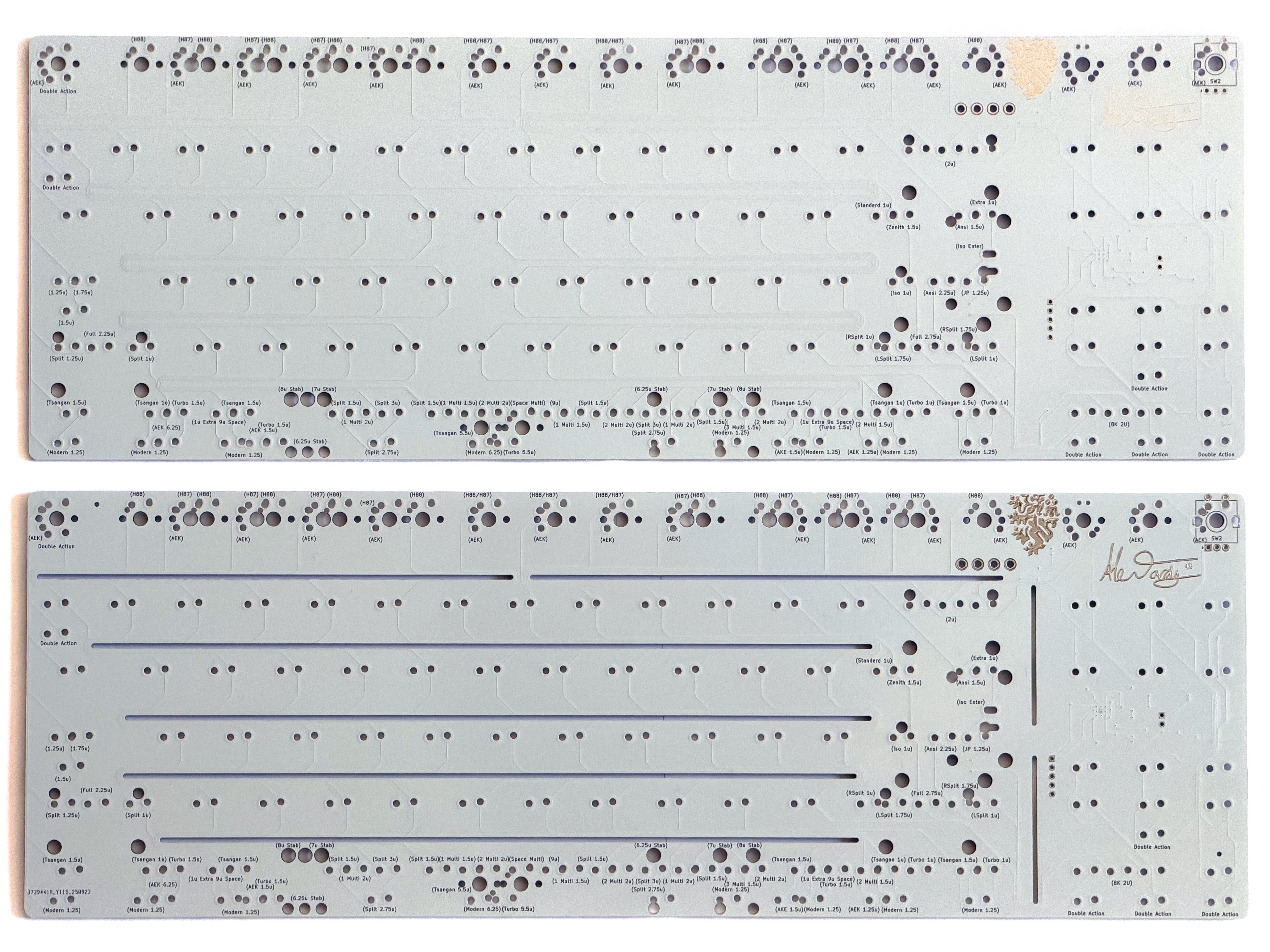

• Solid and flex cut versions
• 1.2mm thickness
• R5 support for many vintage & split space layouts
• 8K layout support, including 2u zero
• MX stabilizer support for DCS keycap sets
• Full Alps ISO layout support
• F13 Lock LED

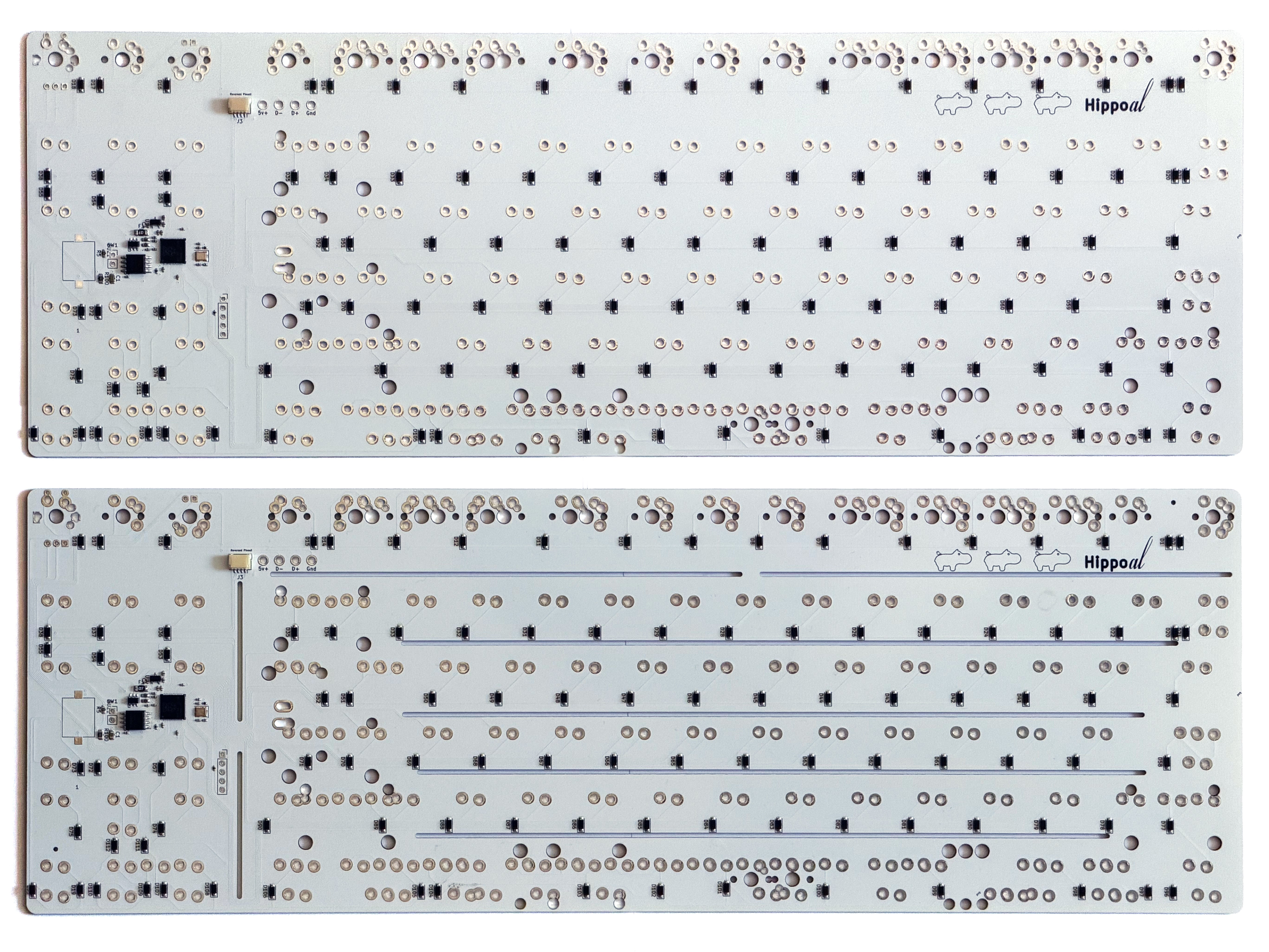

• Back side JST (unified daughterboard JST cable pinout)
• Onboard RP2040 (Pi Pico)
• Top side silk screen labeling for ease of assembly
• Designed by Alectardy98

Lucky Strike Extras:

• AEK F-row/R5 support
• MX compatibility on the F-row for layout flexibility, relegendables or novelties
• Alps SKCLKB Double Action support on Esc, Grave, and Arrows
• Beeper support (KLJ-1102 5v Piezo Buzzer)
• Top right rotary encoder support (EC11)
• Solder pads are enlarged for easy soldering and desoldering with Alps
• THT headers for custom USB implementation
